Wire Mesh
Wire Mesh Wire Conveyor Belt Filter Demister

Plain Weave

A basic wire mesh with the transverse weft wires
and the longitudinal warp wires crossing at right angles at a set interval.

Twilled Weave

The weft wires and weft wires are arranged such that every weft wire crosses at least two warp wires, and vice versa.
Compared to plain weave, twilled weave requires less wire bending, allowing the use of thicker wires.

Plain Dutch Weave

Same as plain weave except that the weft wires are contact with each other.
Features high strength, often used for reinforcement.

Twilled Dutch

A combination of plain dutch and twilled weave. The weft wires are in contact with one another and each crosses at least two warp wires. Provides the finest filter rating compared with the other three waves. The surface is smooth.

Arch Crimped Screen

Wire is crimped only at cross position in this way of weaving.
Because it's possible to keep exact aperture for this screen, it is used as test sieve generally.

Crimped Screen

There is more than 2 crimped weaves between each wires. It is mainly used as grilling or for cover.
Its open area tend to be large, but it is not suitable for sieving.

Flat Top Screen

Because surface of screen is flat, there are  'concavity and convexity' only in reverse side.
This screen is used for sieving from middle size to large size agglomerate.
Is it possible to use long lifetime, because it doesn't occur abrasion intensively at cross position of wires.

Ton-Cap® Screen

Being formed oblong aperture prevents clogging. And it make capacity of sieving larger.

It is possible to increase open area with using same warp and weft wire as plain weave.
There are two kinds for this screen, round wire for warp and weft, round wire for warp and flat wire for weft.

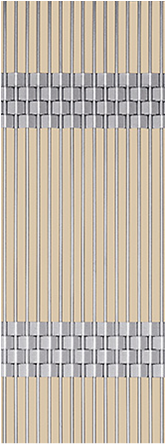

Ty-Rod®  Screen

Ty-Rod®  screen

 Special Ty-Rod® screen

High open area and only two points of touching wire and clods.  It makes clear clogging problem.
This screen is suitable for sieving  with adhesive clods that contains fluid and clay.
There are two kinds for this screen, round wire for warp and weft, round wire for warp and flat wire for weft, called Special Ty-Rod® .
As for Special Ty-Rod®, it is made up by special hard wires of round  and flat wires.

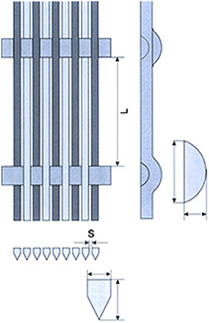

Wedge Mesh Screen

Unique shape of wires of this screen make it possible to separate clods and fluid easily.
This screen is made up by wedge shape wire and half round wire.

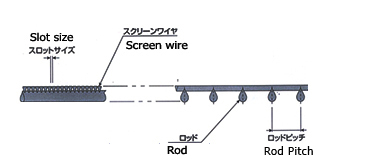

Wedge Wire Screen

This screen has narrow slot with high open area.

Because all wires are welded at every cross points, it has higher strength.
It has smooth surface.

Pipe size Screen

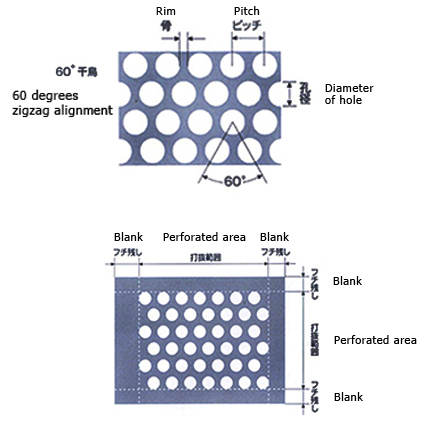

Perforated Screen

  This screen has a outclassing strength because it is manufactured with metal plate.

Tension HOOK

When wire mesh is used in  sieving machine, it is popular with tension hook.
It helps to keep good tension of wire mesh during sieving.

Test Sieve

Because test sieve is used as measurement for particle size distribution, accuracy of aperture is very important.
We supply wire mesh for test sieve only passed JIS-Z-8801standard after inspecting every pieces.


KMG Mesh was developed to prevent contamination that would be mixed with customer's production.
Name of Durmalloy stands for 'Durable Magnetic Alloy'.
In case wire mesh would be broken in customer's sieving machine, there is high possibility to collect broken wire if it is Durmalloy.
