S Type (Conventional Belt)
K2 Type A4, A3 Type K2W, A2W Type
F2, A2 Type S Type Chain Driven Belt
    RR, RRW Type

Spirals wound in the same direction are arranged.

Advantages
Low cost
Light weight

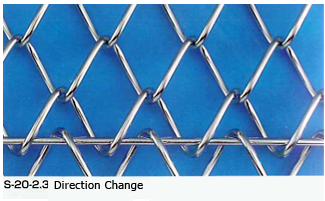

Creep to one direction can be avoided by changing the spiral winding direction with regular intervals.

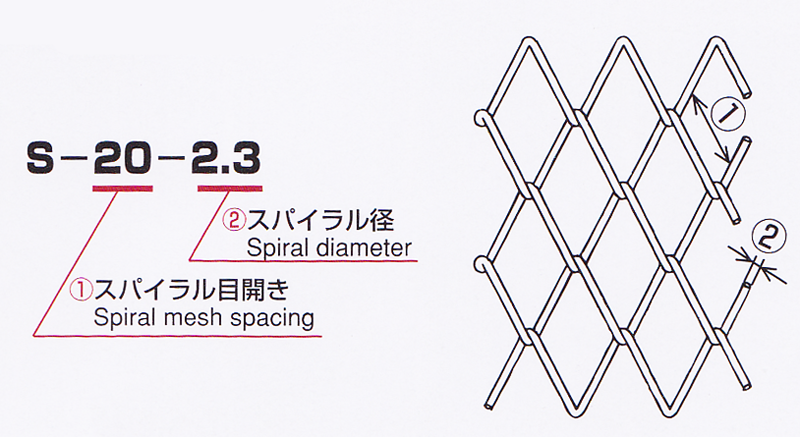

Typical specification of S (Weight is reference data)
Specification Weight (kg/m2) Specification Weight (kg/m2)
 S - 25  -   3.0 6.9  S - 10   - 1.4 3.5
 S - 25  -   2.6 4.7  S - 8    - 1.6 5.5
 S - 20  -   2.6 5.4  S - 8    - 1.4 4.2
 S - 20  -   2.3 4.5  S - 6    - 1.4 6.3
 S - 20  -   2.0 3.1  S - 6    - 1.2 3.9
 S - 15  -   2.0 3.4  S - 5    - 1.2 6.5
 S - 15  -   1.8 3.2  S - 5    - 1.0 3.3
 S - 15  -   1.6 2.9  S - 4    - 1.0 5.9

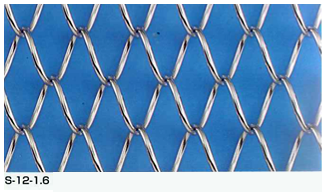

 S - 12  -   1.6 3.3  S - 4    - 0.9 4.3
 S - 12  -   1.4 3.1  S - 3    - 0.7 2.8
 S - 10  -   1.8 5.5  S - 3    - 0.6 1.9
 S - 10  -   1.6 4.2










Technical Terms: - Edge Treatment
                              - Belt Endless
                              - Engineering
