RR, RRW Type
These belts are used for heat treatment of metal products. The spirals of the same direction are arranged, and the rods are passed through the spiral intersections.
The belts are characterized by extremely reduced widthwise shrinkage.
Because of unique structure the belts have high allowable tension.

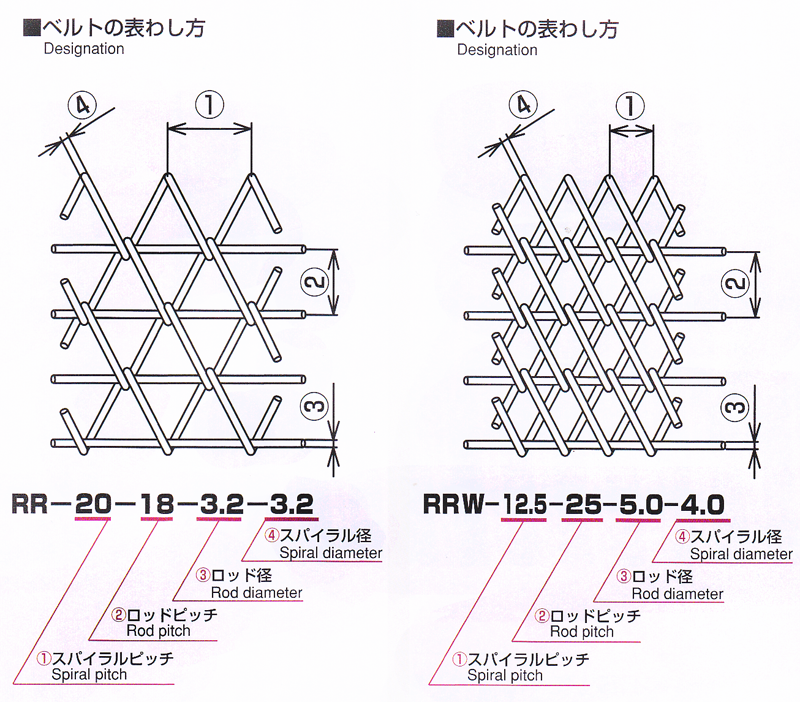

Typical specification of RR (nominal size)
Typical specification of RRW (nominal size)
Specification
Weight (kg/m2)
Specification
Weight (kg/m2)
RR - 27 - 25 - 4.0 - 4.0
15.3
RRW - 12.5 - 25 - 5.0 - 4.0
31.7
RR - 25 - 23 - 4.0 - 4.0
17.1
RRW - 4 - 12 - 2.6 - 2.6
39.1
RR - 20 - 18 - 3.2 - 3.2
13.9
RR - 16 - 13 - 3.2 - 3.2
19.5
RR - 13 - 10 - 2.6 - 2.6
16.3
RR - 12 - 12 - 2.0 - 2.0
8.7
RR - 10 - 10 - 2.0 - 2.0
10.8
RR - 12 - 12 - 1.6 - 1.6
5.3
RR - 8 - 6 - 1.6 - 1.6
10.3
Technical Terms: - Edge Treatment
- Belt Endless
- Engineering
